MECATOOL robots cycles
In welding chassis workshop, it is possible to extract MECATOOL robots cycles description to externals files.

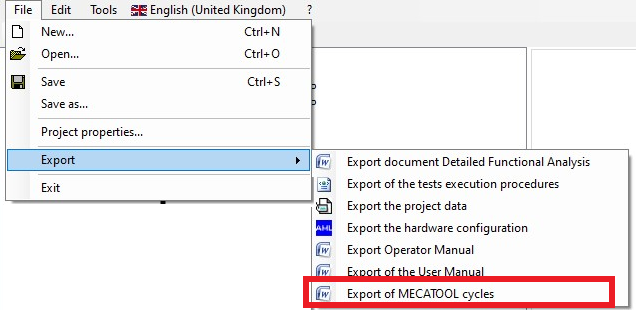

Use the command File \ Export \ Export of MECATOOL cycles
You have the option to choose the controller(s) to export.
Two files are exported per controller:
- ControllerName.docx
- Exchanges and states description
- Cycles synthesis
- Orders and Events list
- Robots flowchart
- Diagrams_ControllerName.vsd
- Diagram of each cycle of the controller (robots + axis)
|
|
Microsoft Visio is necessary to open diagrams. You can also use a free Visio Viewer Download Visio 2016 Viewer from Official Microsoft Download Center |
